Gear Reducer M5 Series
M5&Z45 series gear reducer suitable for ES.TU.TC.TS tubular screw conveyor and feeder.
- Commodity name： Gear Reducer M5 Series
- Product Description
-
M5&Z45 series gear reducer suitable for ES.TU.TC.TS tubular screw conveyor and feeder.

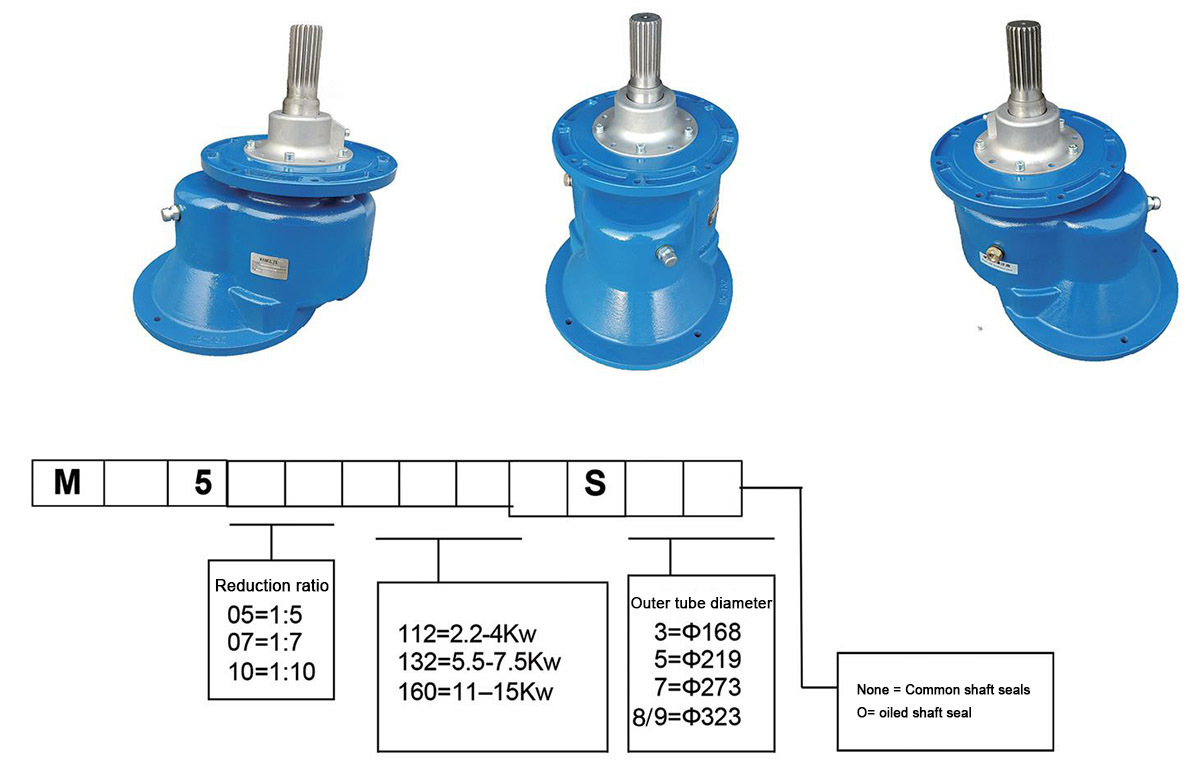

Model number
Dimensional sketch
Reducer type Outer diameter of spiral pipe A B ￠c ￠D DIN5482 E F ￠G N° ￠ M5...S3 168 250 220 162 40*36 72.5 85 8 M10 M5...S5 219 275 250 210 40*36 72.5 85 8 M10 M5...S7 273 330 305 265 40*36 72.5 85 8 M10 M5...S8 323 405 360 315 40*36 72.5 85 8 M10 M5...S9 323 405 370 315 40*36 72.5 85 8 M10 Motor specification ￠H ￠L ￠M N P ￠Q ￠R S T Weight S3 S5 S7 S8/S9 100-112 250 215 180 210 14 M12 28 31 8 38 40 42 52 132 300 265 230 230 14 M12 38 41 10 42 45 46 56 160 350 300 250 260 15 M16 42 45 12 46 48 50 60
