SAA spline sets
SAA spline sets are welded to the ends of the inner tube for the connection of the screw168/219/273/323 screw.
- Commodity name： SAA spline sets
- Product Description
-
SAA spline sets are welded to the ends of the inner tube for the connection of the screw168/219/273/323 screw.
All can be customized in stainless steel
Model

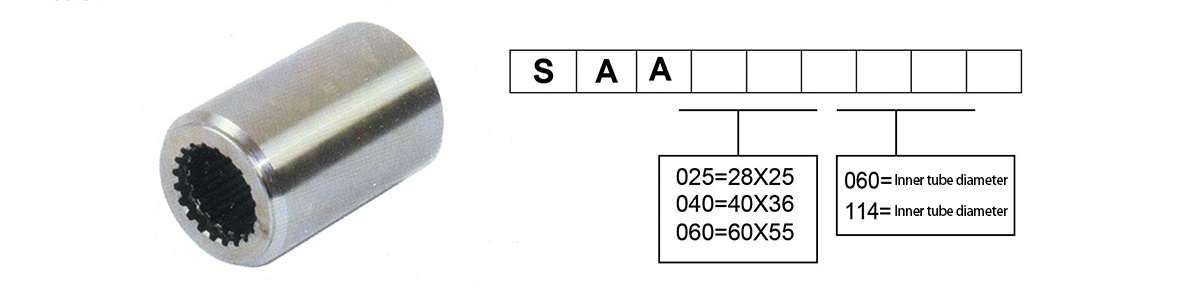

Dimensional sketch
Model Number of teeth A B C D kg SAA025T0481 15 28×25 48 70 48 0.45 SAA040T0601 20 40×36 60 92 60 1.1 SAA040T1141 20 40×36 114 140 114 9.1 SAA060T1141 28 60×55 114 140 114 8.4 SAA060T0891 28 60×55 89 140 59 7.5 SAA040T0891 20 40×36 89 140 89 6.5 SAA040T0892 20 40×36 89 92 89 3.3 SAA040T0701 20 40×36 70 92 70 1.8 SAA040T0761 20 40×36 76 92 76 2.3 SAA040T0631 20 40×36 63 92 63 1.3
