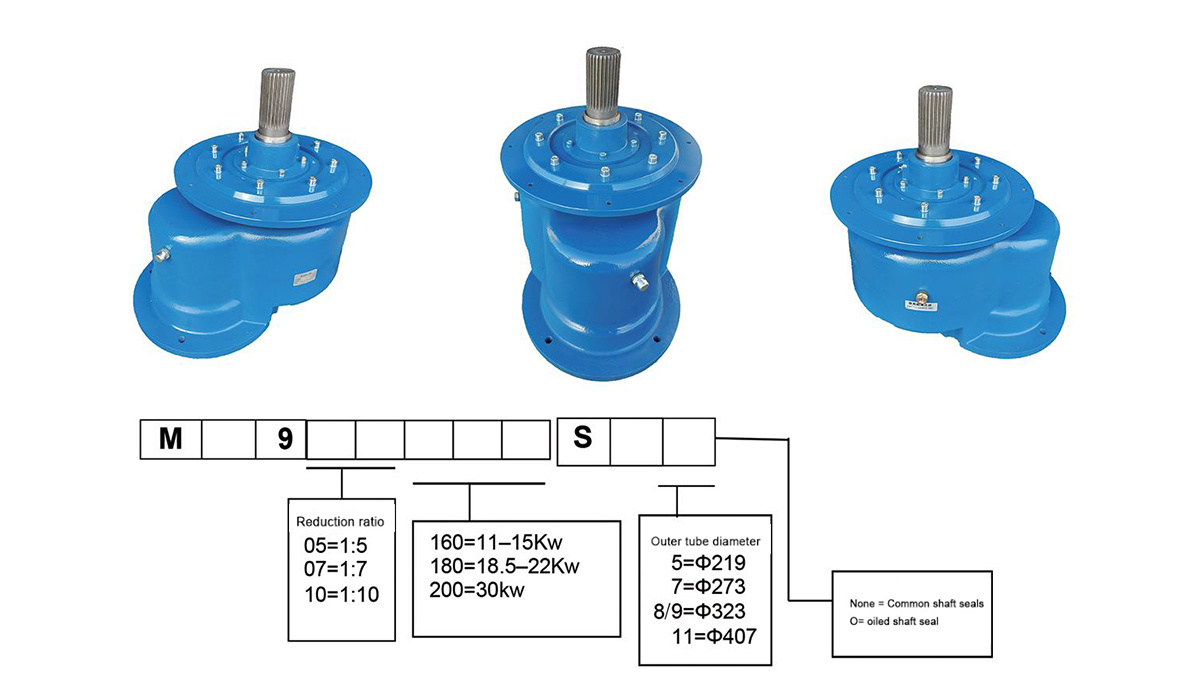

Gear Reducer M9 Series

M9&Z49 series gear reducer suitable for ES.TU.TC.TS tubular screw conveyor and feeder.
  • Commodity name： Gear Reducer M9 Series

Category:

Gear Reducer

Email:

wns@weinaisicd.com

Get Quote
Also Like
  • Product Description

  • M9&Z49 series gear reducer suitable for ES.TU.TC.TS tubular screw conveyor and feeder.

    Model number

    Dimensional sketch

    Reducer type Outer diameter of spiral pipe A B ￠c ￠D DIN5482 E F ￠G
    N° ￠
    M9...S5 219 275 250 210 60*55 72.5 110 8 M10
    M9...S7 273 330 305 265 60*55 72.5 110 8 M10
    M9...S8 323 405 360 315 60*55 72.5 110 8 M10
    M9...S9 323 405 370 315 60*55 72.5 110 8 M10
    M9...S11 407 470 440 390 60*55 72.5 110 8 M10



    Motor specification ￠H ￠L ￠M N P ￠Q ￠R S T Weight
    S5 S7 S8/S9 S11
    160 350 300 250 302 22 M16 42 45 12 100 107 118 135
    180 350 300 250 302 22 M16 48 51.5 14 100 107 118 135
    200 400 350 300 302 22 M16 55 59 16 106 113 124 141
